VHC25 · VeeaONE Platform™

VeeaHub STAX

VeeaHub STAX combines tri-band Wi-Fi 6, IoT connectivity, vMesh and containerized edge computing in a compact, fanless indoor system.

Order it in configurations that add PoE++, multigigabit Ethernet, NVMe storage or 4G/5G connectivity, supplied as one integrated unit.

Talk to sales Download the datasheet

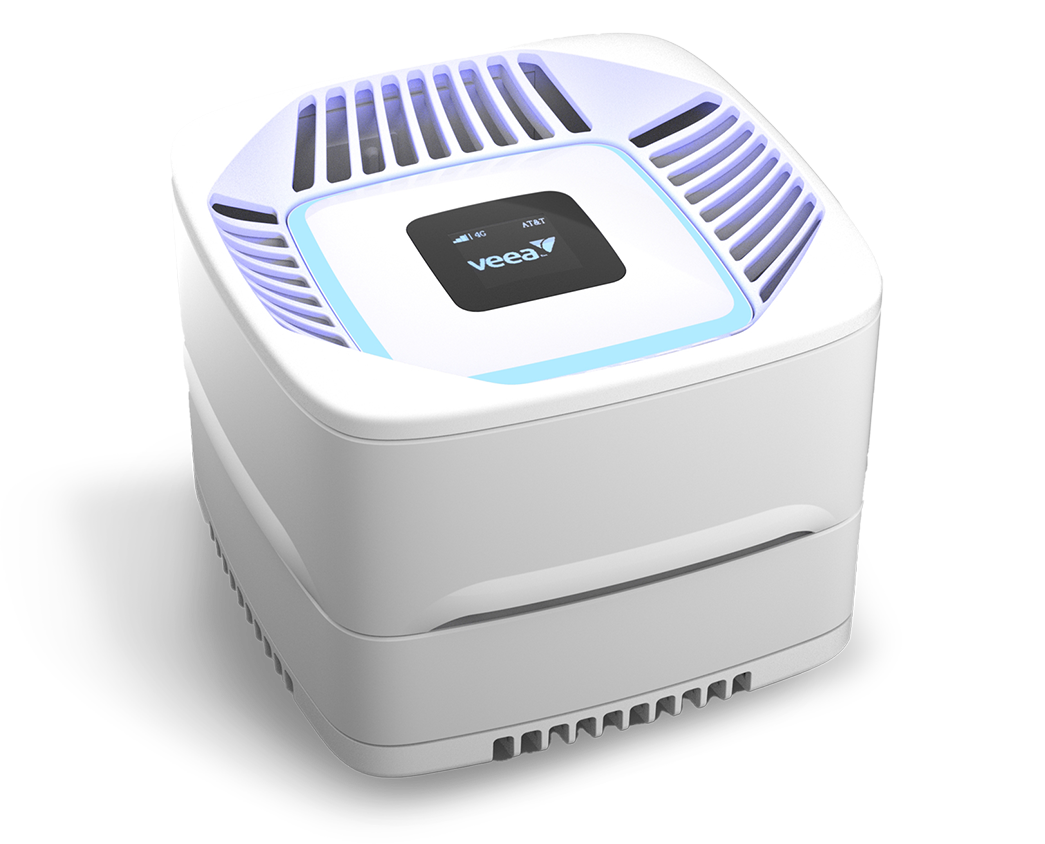

VeeaHub STAX with the 5G module fitted

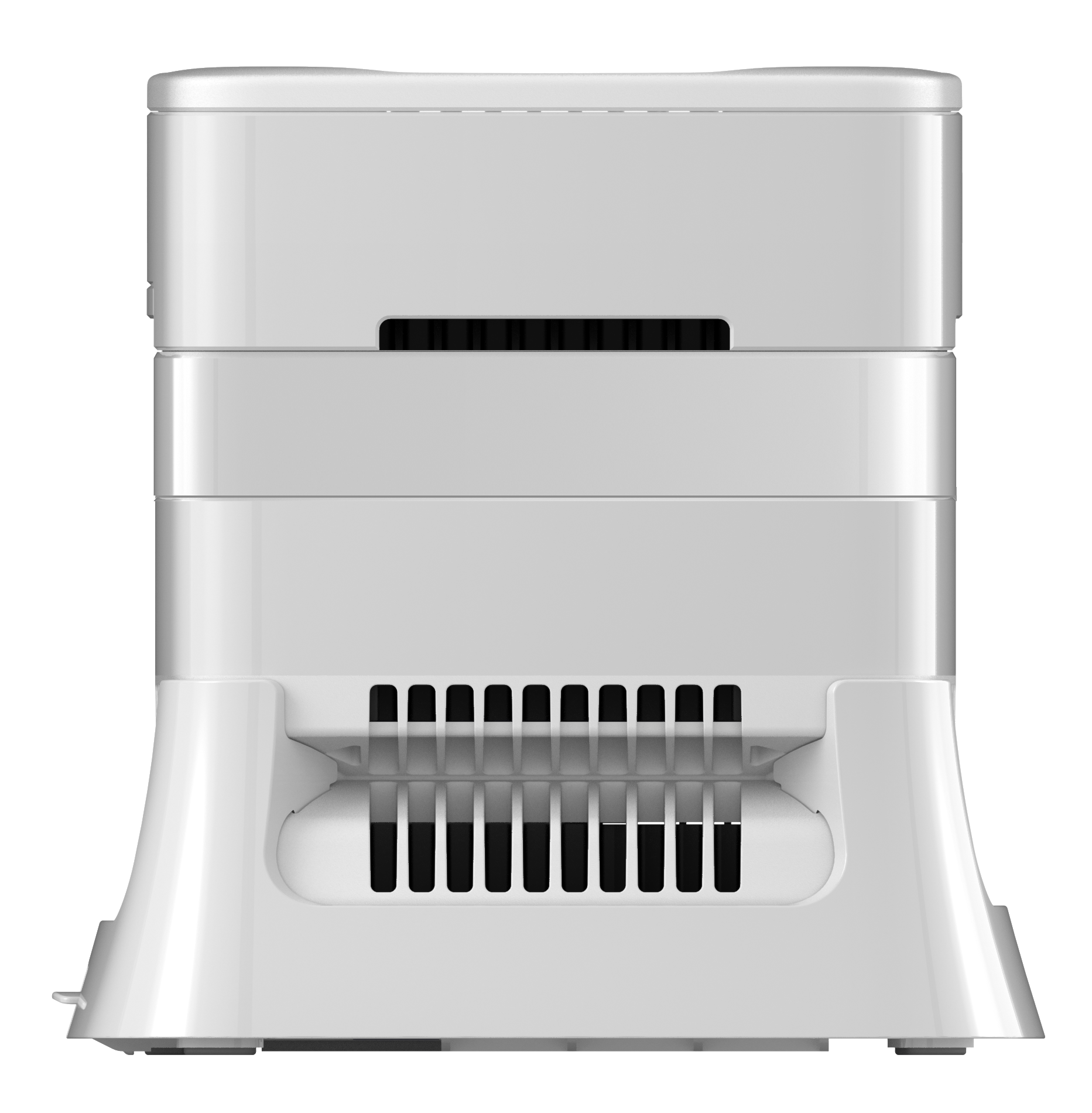

VeeaHub STAX carrying the PoE and NVMe modules
  • Wi-Fi 6
  • 802.11ax
  • Tri-band
  • PoE++ 802.3bt
  • NVMe
  • 5G Sub-6
  • Zigbee 3.0
  • Thread
  • Bluetooth LE
  • microSDXC
  • vMesh
  • Secure Docker
  • 15.8 W
  • 107 mm
At a glance

A compact edge system for indoor sites

  • Tri-band Wi-Fi 6

    Three 2×2:2 radios across 2.4 GHz and two 5 GHz bands, supporting up to 12 SSIDs and 128 clients per radio.

  • Configured for the deployment

    Available configurations add PoE++, multigigabit Ethernet, NVMe storage or 4G/5G connectivity. Selected modules are assembled and tested before shipment.

  • Low-power, fanless operation

    The base system typically draws 15.8 W and operates without fans or other moving parts. Power consumption varies with the selected modules.

  • Flexible indoor placement

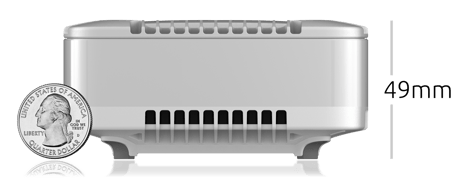

    The base system measures 107 × 107 × 49 mm and weighs 0.41 kg. Mounting options and overall dimensions depend on the selected configuration.

Configurations

Configure STAX for the site

Choose the connectivity, power and storage capabilities required by the deployment. Expansion modules retain the compact 107 × 107 mm mounting footprint, although the system height, power consumption and mounting options vary by configuration.

Selected modules are assembled, configured and tested before shipment.

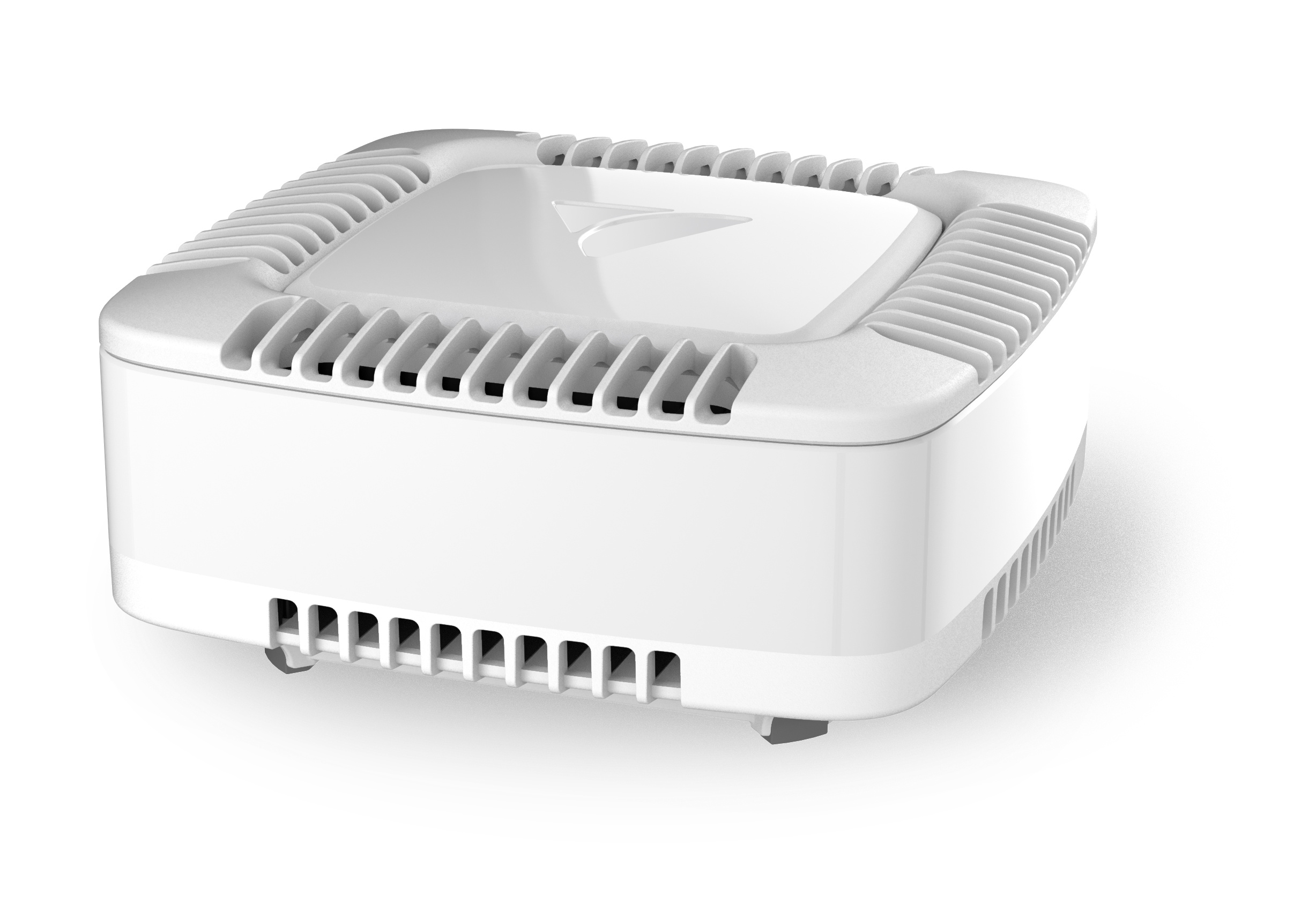

VeeaHub STAX base unit

Base unit

Tri-band Wi-Fi 6, IoT connectivity, vMesh, containerized edge computing, two Gigabit Ethernet ports and microSDXC expansion.

  • Tri-band Wi-Fi 6
  • 2x 1000BASE-T
  • Up to 2 TB microSDXC

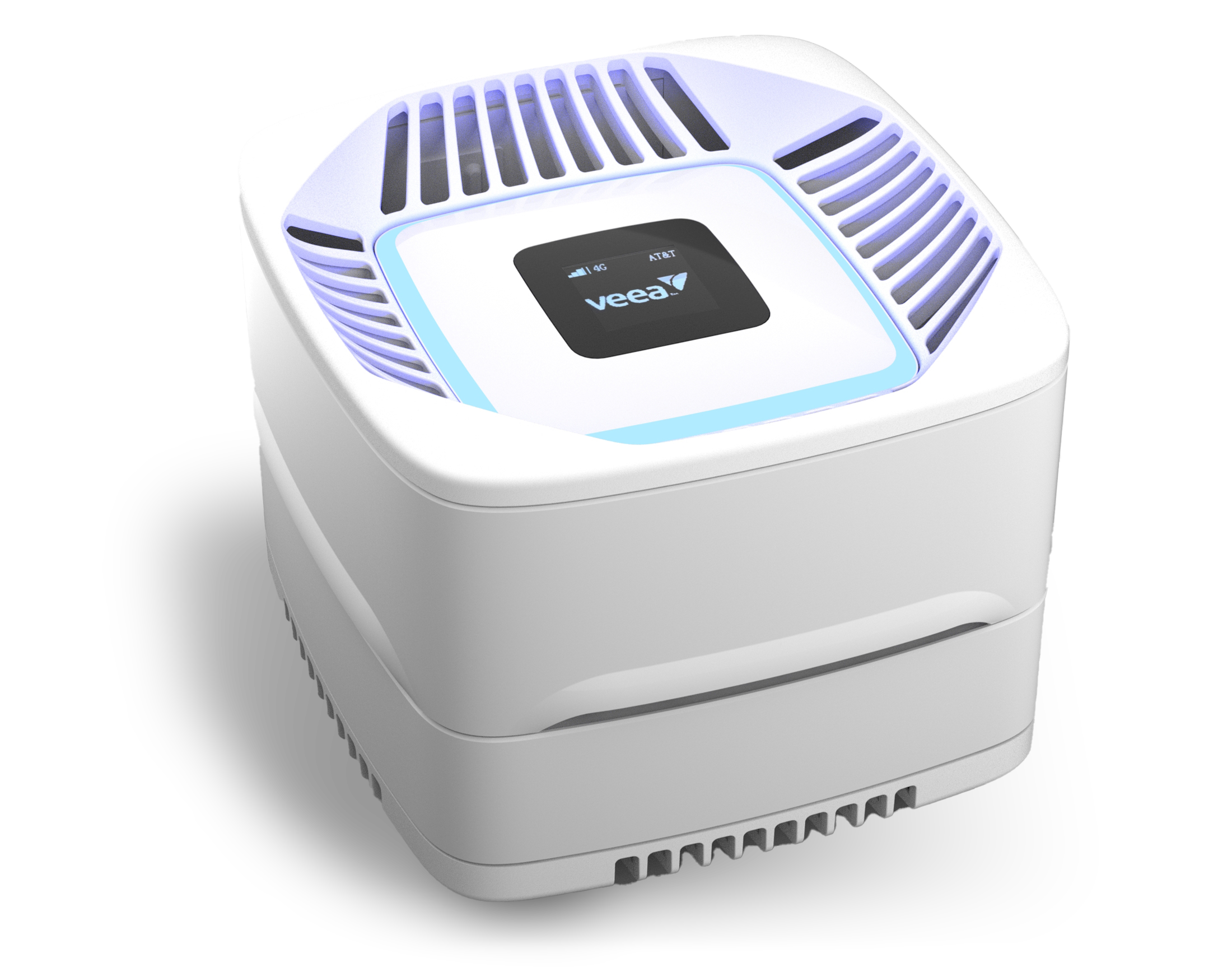

VeeaHub STAX with the 5G module

With 5G

Adds cellular backhaul, GNSS and supported SIM options. Available technologies and bands vary by module and country.

  • 5G Sub-6, NSA and SA
  • GNSS and eSIM
  • LTE to CAT-19

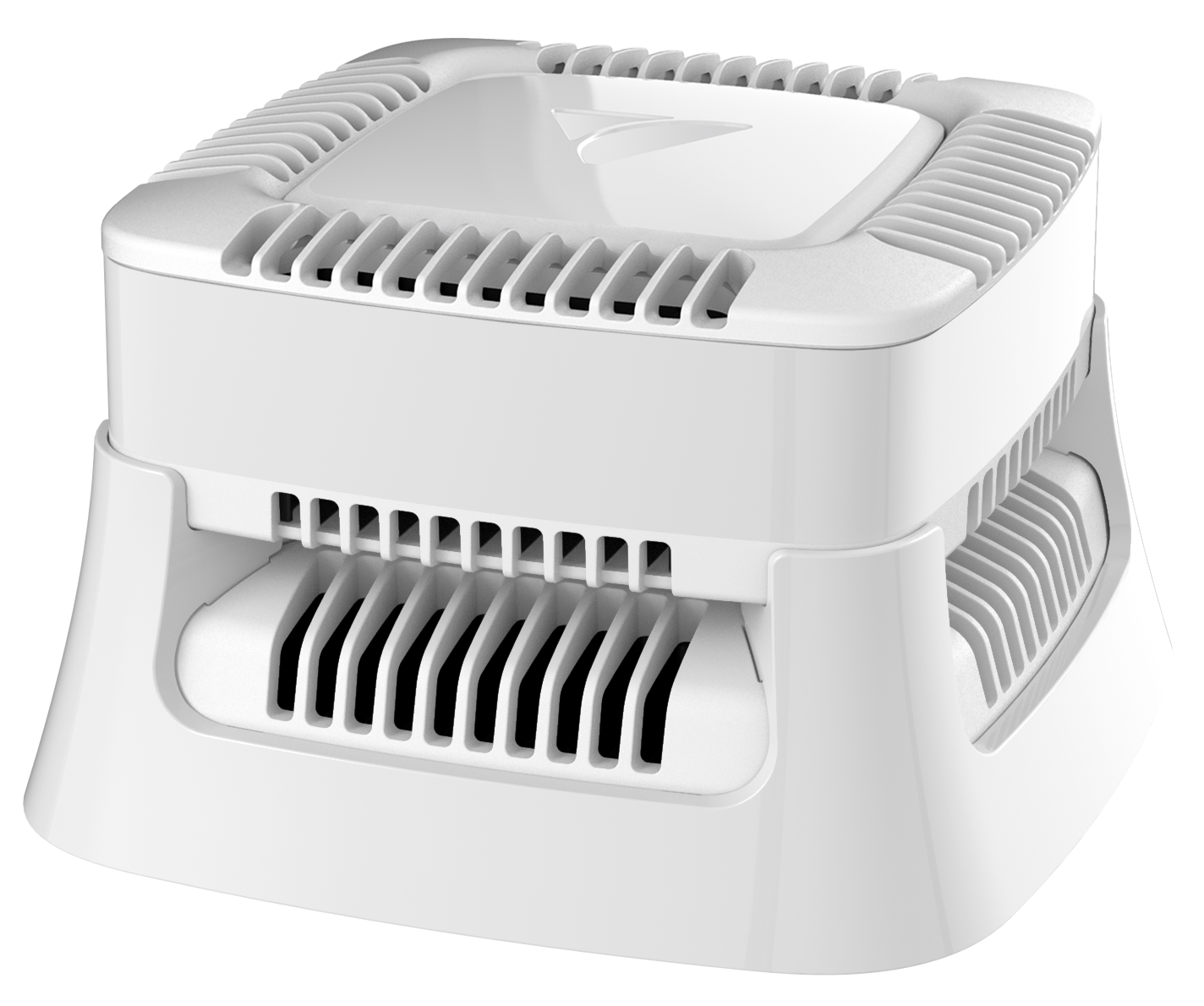

VeeaHub STAX with the PoE module

With PoE

Adds PoE++ power and an nBase-T port supporting multigigabit Ethernet up to 10 Gb/s.

  • PoE++ 802.3bt Type 3
  • nBase-T to 10G
  • Wall or ceiling

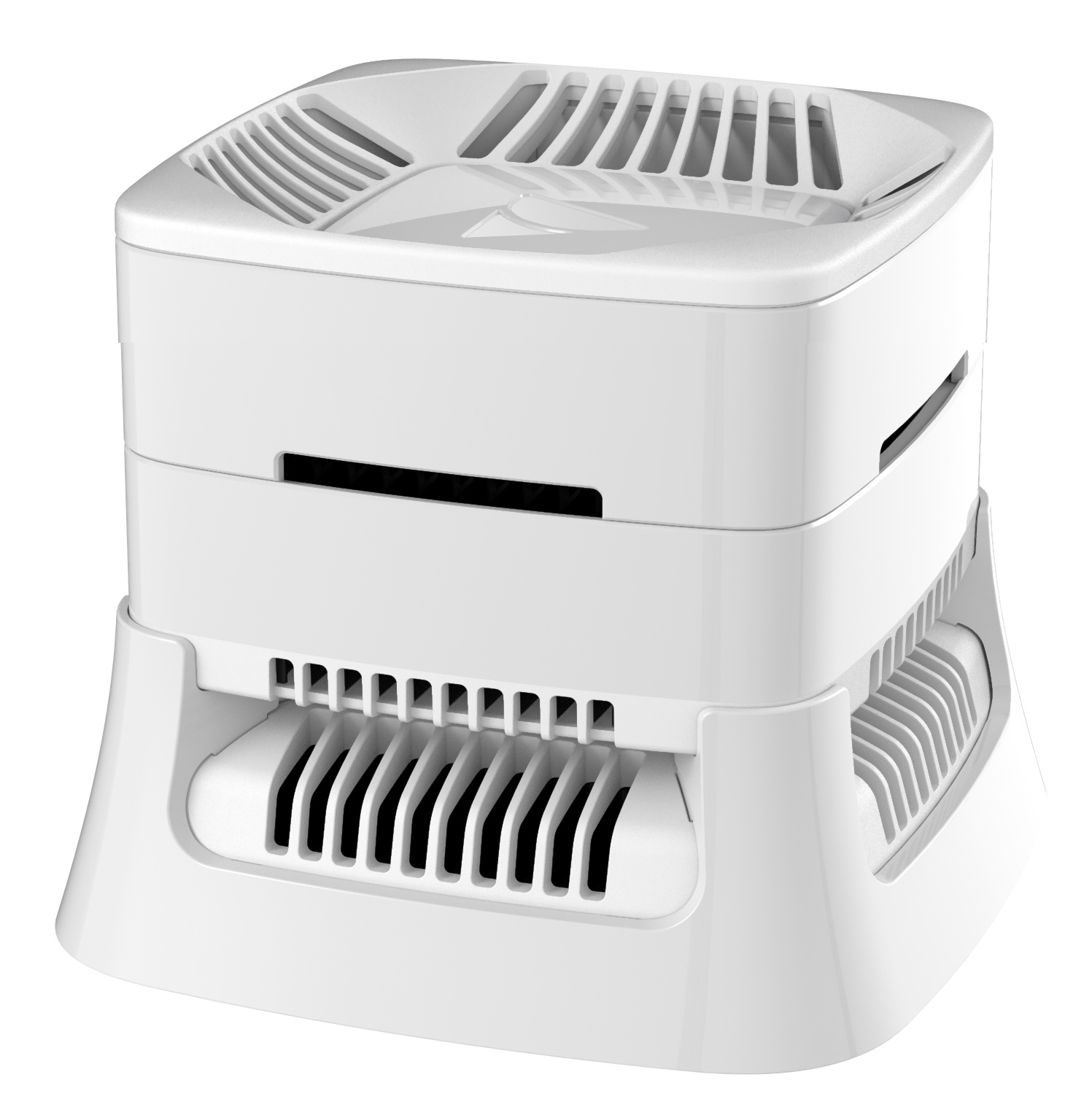

VeeaHub STAX with the PoE and 5G modules

With PoE and 5G

Combines PoE++ and multigigabit Ethernet with supported 4G or 5G connectivity for primary or backup backhaul.

  • PoE++ Class 5
  • Multi-gig to 10G
  • 5G Sub-6
VeeaHub STAX with the PoE and NVMe modules

With PoE and NVMe

Combines PoE++ and multigigabit Ethernet with 1 TB or 2 TB of NVMe storage for applications requiring additional local capacity.

  • 1 TB or 2 TB NVMe
  • 450 MBps read
  • Powered over Ethernet

OrderingIt arrives as one integrated system

Select the required modules when ordering, and the STAX configuration is assembled and tested before shipment.

  • PoE++, NVMe and cellular options are selected with the order
  • One assembled system to receive, mount and manage

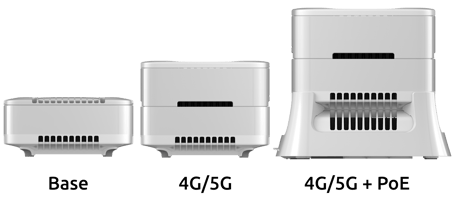

  • A common 107 × 107 mm mounting footprint, with height varying by configuration
  • Mounting options depend on the selected modules and accessories

In serviceSupported modules are detected automatically

STAX recognizes supported installed modules, simplifying provisioning and ongoing management.

  • Supported modules are detected and configured by the system
  • The unit is monitored through Veea Control Center and VeeaHub Manager
  • Applications and policies use the same VeeaONE deployment workflow as the rest of the VeeaHub fleet
  • Available fleet and multi-tenant functions depend on the platform configuration and licensing
Technical specifications

VeeaHub STAX specifications

Review the compute, wireless connectivity, interfaces, expansion options, power requirements and environmental specifications for VHC25.

Specifications and available configurations are subject to change. Cellular bands, certifications and ordering options vary by country.

Compute
Processor Arm Cortex-A53, quad-core at 1.4 GHz
Hardware acceleration Dual Network Processing Units at 1.5 GHz, Cryptography Engine, Packet Processing Engine
Memory 3 GB PCDDR4
Internal storage 32 GB eMMC flash
External storage Up to 2 TB via microSDXC
Optional storage 1 TB or 2 TB NVMe Storage Module
Software environment
Operating system Linux server with a virtualized software environment
Containers Secure Docker 2
Network software Software Defined Networking and Network Function Virtualization
Developer tools VeeaHub Developer Toolkit and the Veea Developer Portal
Wi-Fi
Standard Tri-band IEEE 802.11 a/b/g/n/ac/ax
Frequency bands 2.4 to 2.484 GHz (ISM), 5.17 to 5.25 GHz (U-NII-1), 5.25 to 5.33 GHz (U-NII-2), 5.49 to 5.73 GHz (U-NII-2e), 5.73 to 5.83 GHz (U-NII-3)
Radio chains and peak PHY rates
2.4 GHz 2x2:2, 574 Mbps
5.2 GHz 2x2:2, 1201 Mbps
5.7 GHz 2x2:2, 1201 Mbps
Channel bandwidth 20, 40 and 80 MHz
Capacity and RF
SSID management 12 SSIDs, 4 per Wi-Fi radio
Client capacity 128 clients per radio
RF configuration 2 internal antennas per Wi-Fi radio, patented antenna design
Security and features
Security WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i
SSID features AP isolation, dynamic PSK
Channel selection DFS and ACS
Device roaming 802.11r
Modes AP and hotspot
IoT connectivity
Bluetooth Bluetooth Classic 4.2 and Bluetooth 5.x Low Energy
Zigbee Zigbee 3.0 and Zigbee Pro
Thread Supported, with 6LoWPAN
Positioning GNSS, supported by the optional 4G LTE or 5G Sub-6 GHz module
Wireless WAN
5G Module, optional
Operation 3GPP Release 16 NSA and SA, Sub-6 GHz
Chipset Qualcomm Snapdragon X62-based
SIM External uSIM tray and internal eSIM
NSA bands n1, n2, n3, n5, n7, n8, n12, n13, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
SA bands n1, n2, n3, n5, n7, n8, n12, n13, n18, n20, n25, n26, n28, n30, n38, n40, n41, n48, n66, n71, n77, n78, n79
Carrier aggregation Sub-6 FDD plus FDD, TDD plus TDD, FDD plus TDD 2CA
Downlink 4x4 MIMO n1, n2, n3, n7, n25, n38, n41, n48, n66, n77, n78, n79
LTE on the same module CAT-19
4G LTE Module, optional
Category CAT-6 to CAT-19
SIM External uSIM tray and internal eSIM
Positioning GNSS
Either module occupies the same slot and the same 107 x 107 x 87 mm envelope.
Ports and interfaces
Ethernet 2x 1000BASE-T
Multi-gigabit Ethernet With the optional PoE Module: nBase-T RJ45 copper at 1G, 2.5G, 5G and 10G, configurable as a LAN or a WAN interface
Power over Ethernet Optional cradle on the base unit; PoE++ to 802.3bt Type 3, Class 4 or Class 5, with the PoE Module
Expansion connector Proprietary, multiple high-speed interconnects

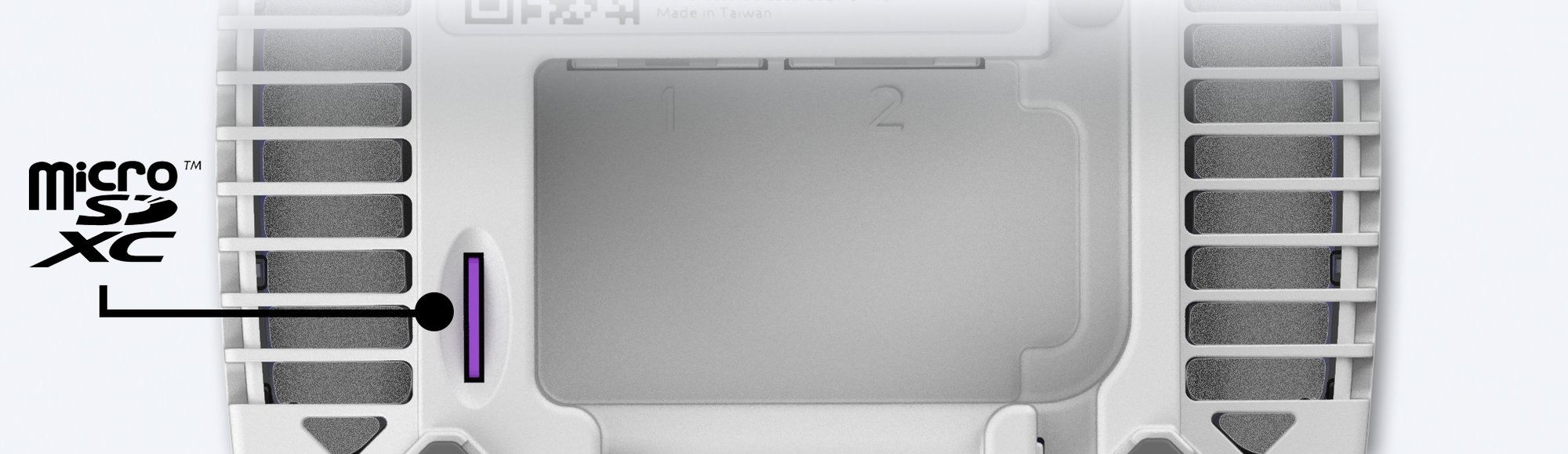

Storage slot microSDXC
Controls and indicators Reset button, multi-color status LED
The PoE Module reports the class granted by the power sourcing equipment over an I2C-UART interface. Class 5 is required when further modules such as 5G are fitted.
Expansion modules
PoE Module
Standard PoE++, 802.3bt Type 3, Class 4 or Class 5
Ethernet nBase-T multi-gigabit RJ45 copper at 1G, 2.5G, 5G and 10G
Roles Configurable as a LAN or a WAN interface
Mounting added Ceiling and wall
NVMe Storage Module
Standard NVM Express
Capacity 1 TB or 2 TB
Performance Write up to 200 MBps, read up to 450 MBps
Applications Streaming and video on demand, AI model inference at the edge, real-time 3D rendering, and storage, CDN, cybersecurity and DDoS mitigation
Networking and management
Mesh Wired or wireless, vMesh technology
IP IPv4, IPv6 and dual-stack
Network security Stateful firewall, 802.1Q VLAN, 802.1x, VxLAN
Management Veea Control Center and VeeaHub Manager
Cloud VeeaCloud, with comprehensive multi-tenant cloud management
Applications Containerized applications built with the VeeaHub Developer Toolkit
Power, physical and environment
Power supply 12 VDC at 2.5 A
Typical consumption 15.8 W base unit, 20.3 W with the NVMe Module, 20.8 W with the PoE Module, 20.8 W with the 5G Module
Dimensions 107 x 107 x 49 mm base unit; 107 x 107 x 87 mm with the 4G or 5G Module
Weight 0.41 kg base unit; 0.69 kg with the 4G or 5G Module
Color White
Operating temperature 0 °C to 40 °C
Cooling Fan-less, no special cooling required
Mounting Desk and ceiling; the PoE Module adds ceiling and wall
Compliance and ordering
Electrical certifications FCC, CE, KC, SSRC, UL
Model number VHC25
Optional accessories VeeaCare packages, 4G LTE Module, 5G Module, NVMe Storage Module, mounting bracket, spare Ethernet cable
Warranty Limited device warranty, with VeeaCare extended warranty packages available

Specifications subject to change without notice. Country-specific regulatory information is available upon request.

Consolidated infrastructure

Five functions in one compact edge system

A STAX deployment can consolidate functions that might otherwise require separate hardware. The exact equipment it replaces depends on the selected configuration and site requirements.

  • Wireless access point Tri-band Wi-Fi 6 with up to 12 SSIDs and centrally managed network services.
  • IoT gateway Bluetooth, Bluetooth LE, Zigbee and Thread connectivity for supported devices and sensors.
  • Cellular gateway Optional 4G or 5G connectivity for primary, secondary or backup backhaul.
  • Mesh router Wired or wireless vMesh connectivity between supported VeeaHub systems.
  • Edge application server Integrated Linux-based compute for approved, signed containerized applications.
VeeaHub STAX base unit

One VeeaHub STAX

  • 107 mm square
  • 0.41 kg
  • 12 VDC
  • One thing to manage
Questions

Questions before specifying STAX

Which modules can I order with it?

Available options include PoE++ with multigigabit Ethernet, 1 TB or 2 TB of NVMe storage, and supported 4G or 5G cellular connectivity with GNSS. Compatible combinations, cellular technologies and regional availability should be confirmed when ordering.

What can I use the NVMe module for?

The NVMe module adds 1 TB or 2 TB of local storage for applications such as content caching, application data, logs and supported data-intensive edge workloads. Suitability depends on the application’s storage and performance requirements.

Can STAX connect without a wired uplink?

Yes. Supported configurations can use optional 4G or 5G connectivity, or wireless vMesh through another VeeaHub. Cellular technologies, bands and SIM options vary by module and country.

Where can STAX be mounted?

STAX is designed for indoor operation from 0 °C to 40 °C. The base system supports desk or ceiling placement, with additional mounting options available for selected module configurations and accessories.

How is a fleet of STAX systems managed?

STAX systems are provisioned, configured and monitored through VeeaONE management services, including Veea Control Center and supported VeeaHub Manager functions. Applications and policies can be deployed across STAX and other VeeaHub models from the same management environment.
