STAX™ and BOLT™

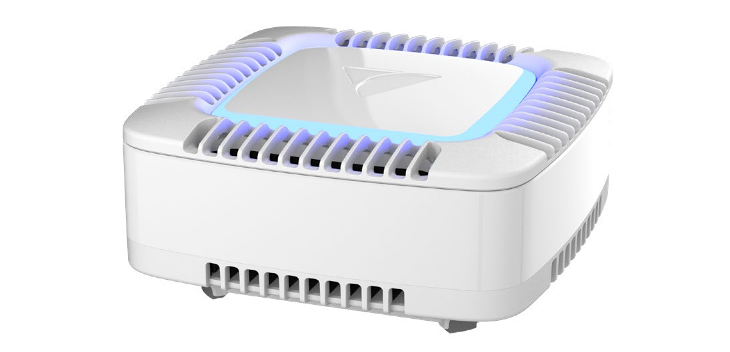

Introducing STAX: a groundbreaking VeeaHub product small enough to fit in the palm of your hand.

Enterprise-class Wi-Fi 6 AP (tri-band 2x2 MU-MIMO) with mesh and dual-WAN connectivity, IoT gateway, Linux server, large storage and full stack security with hybrid edge-cloud firewall and router functionality.

  • General Features
    • Highly unique design with a compact form-factor that supports stackable Modules
    • Fanless; No special cooling required
    • INtegrated antenna/heat-sink design
  • Powerful Linux Edge Server
    • Quad A53, 1.4GHz, 64-bit, quad-core Snapdragon SOC
    • Network Subsystem (NSS) to accelerate [packet processing with Packet Processing Engine (PPE), dual UBI32 1.5GHz NPU, Inline Security Engine.
    • 32GB eMMC flash storage expandable up to 2 TB via removable microSD card
  • VeeaWare software  architecture
    • Secure Boot with hardware-based chain-of-trust for unmatched platform security

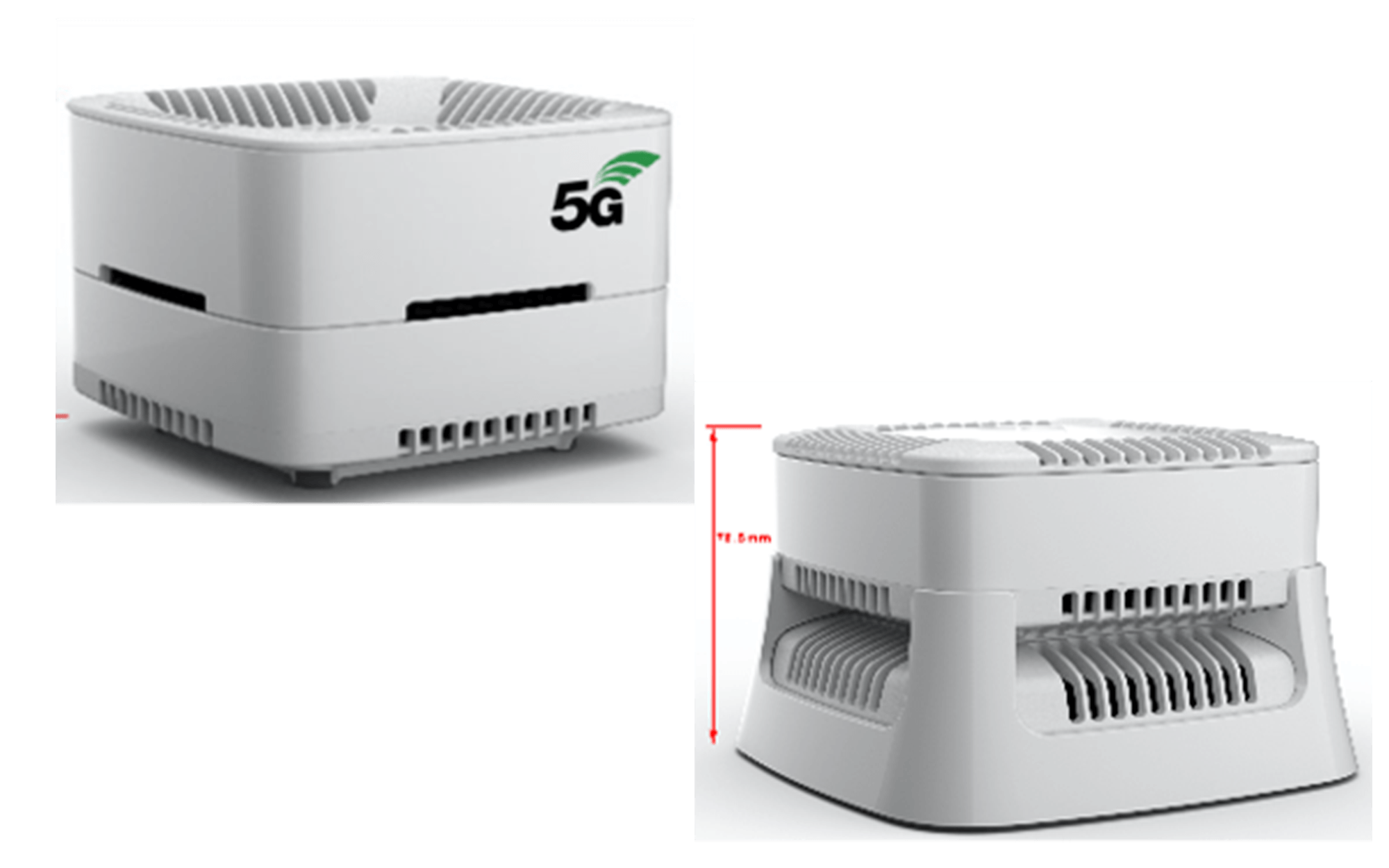

5g1 and 5g2
Logo Stax

STAX Base Unit Size: 4” X 4” X 2”

  • Wired/Wireless Dual-WAN & mesh connectivity over LAN
    • Dual GbE RJ45 jacks and optional 5GbE POE dock
    • 4G CAT-16 1 Gbps global module
    • 5G global module (Sub-6 GHz)
    • Global multi-carrier support with USIM, eSIM & vSIM capability
  • IoT gateway functionality with coexistence support for 2.4 GHz Wi-Fi
    • Bluetooth Low Energy (BLE) SIG v5.0 compliant
    • Bluetooth Classic v4.2
    • ZigBee (802.15.4) compliant to v2006 spec

STAX Base Unit Size: 4” X 4” X 2”

Additional Product Details

  • Developed for large volume production based on a single board design (12-layer PCBA)
  • Powerful yet cost-effective
  • Simple plug-and-play setup
  • Feature expansion with stackable modules supporting a wide range of functionality stacked on the base unit
    • Stackable modules purchased separately and mixed and matched by user as desired for different rooms (4G/5G, smart speaker/mic, conference room projector, etc.
  • Offered in two models with different software configurations: STAX & BOLT
    • BOLT is a Wi-Fi 6 mesh router without the Linux server functionality or VeeaWare features
  • Both models support “fleet management” features for deployment and maintenance
  • Ideal for most indoor use cases but, especially, for consumer, SMB/SME, SOHO, Remote Work, commercial buildings, hospitals, hotel rooms, restaurants, branch offices and many more markets

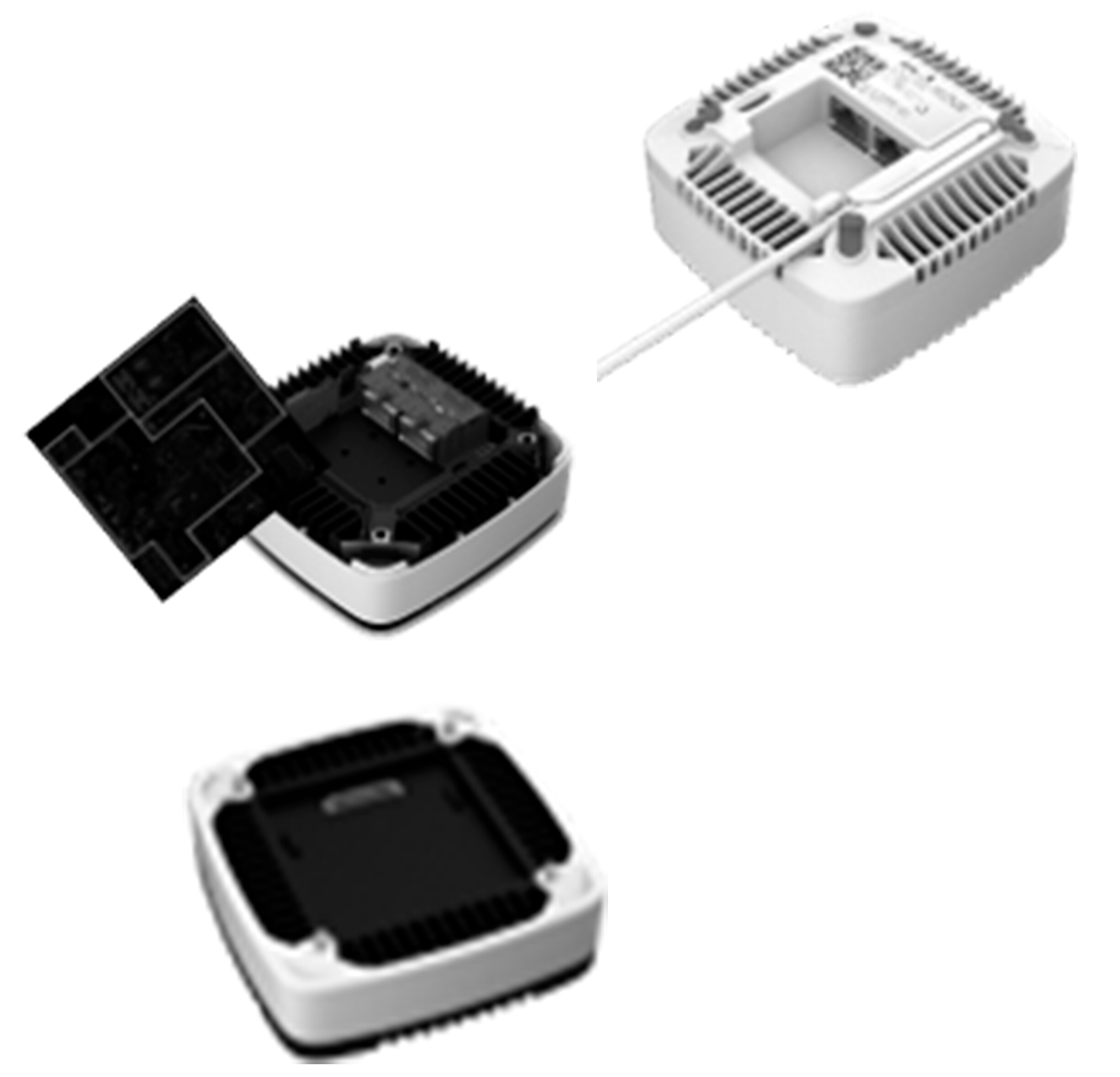

product-features

VeeaHub BOLT Products Offer Automation for Smart Spaces

Automation Devices for Smart Spaces

Full HomeKit Integration
Lights, Thermostats, Cameras, Locks, Shades, Outlets, Garage Doors, Sensors, and more

Lighting and Shade Control
Works with Lutron, Philips Hue, Vera, Somfy, Insteon, Belkin WeMo, and more

Alexa, Siri Voice Control and Shortcuts
Deep integration with Alexa, Siri and Shortcuts for voice and programmed automation

Security Camera Control
Video camera support for Arlo, Ring, RTSP, HomeKit, and ONVIF cameras

View event clips from Ring Video Doorbells
Monitor cameras while multitasking with iPad Split View support

SmartThings
Triggered by events in your SmartThings environment such as a motion detector

Climate Control
Control your EcoBee, Honeywell, and HomeKit thermostats

Bolt-logo

Audio/Video Control for Smart Spaces

Automation Devices for Smart Spaces

See Controls for all of your TVs
These include all of the original remote's commands, along with more advanced commands such as input control and discrete power commands

Control Apple TV with voice or gestures
These include all of the original remote's commands, along with more advanced commands such as input control and discrete power commands

Stream Away
Full support for Plex, Fire TV, Shield, Kodi, Roku, Kaleidascape and other streaming media players

Stream Logos

Get Full IP Control
Command modern televisions from LG, Samsung, Sony, Vizio, and more

Receiver integration
Veea Remote works with Denon, Yamaha, Onkyo, Marantz, Integra, Anthem, Trinnov, JBL, and more

smartspaces
smartspaces1
harmonize1

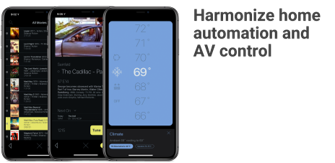

harmonize
