VeeaHub® Smart Computing Hub

The VeeaHub family offers a variety of options to meet your solution needs, for both indoor and outdoor applications. All VeeaHubs share a combination of multi-application processing, storage, Wi-Fi, Ethernet, vMesh/vBus support and multiple IoT connectivity options. Different VeeaHub models can be combined across the same mesh, allowing you to add different capabilities to your edge network exactly where needed. And all VeeaHubs include VeeaWare software with access to our cloud-based Edge Management tools, making deployment, operation and management of your edge networks and applications easy.

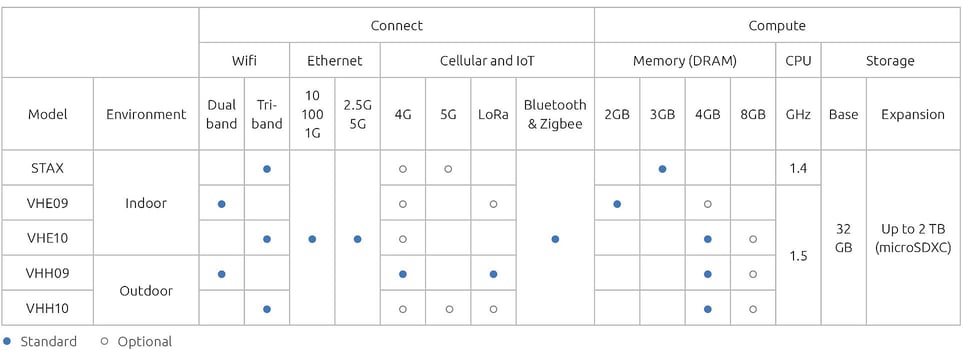

VeeaHub Smart Computing Hub Portfolio

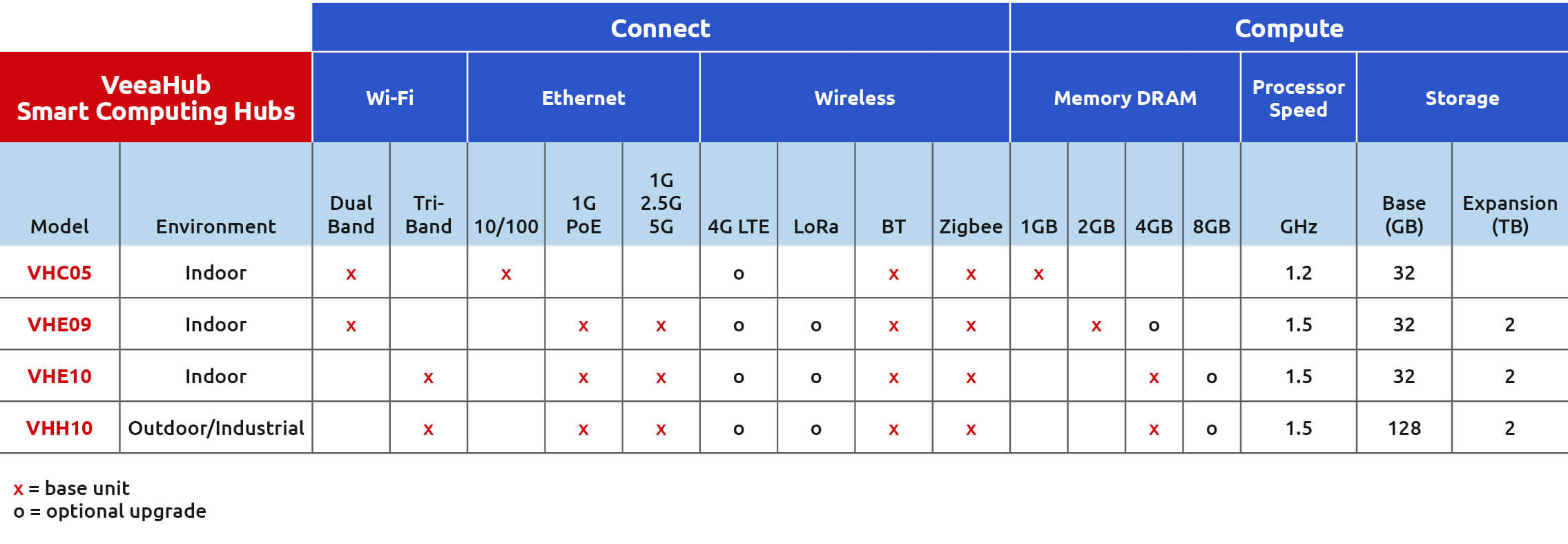

Table_VeeaHub Features_09 10 21

Indoor Environments

VeeaHub VHC05

VHC05 VeeaHub #2

The entry-level VeeaHub for a broad array of small-office, home-office or consumer-oriented applications, offering a combination of connectivity, processing, and security in a value-focused package for your edge applications.

  • Dual-band Wi-Fi 5 to 867Mbps
  • ARMv8 Quad Core Processor, 1.2GHz
  • 1GB DRAM, 32GB Flash
  • 100Mb Ethernet WAN/LAN
  • Bluetooth 4.0, BLE
  • Zigbee 3.0
  • 2xUSB 2.0, HDMI
  • 4G LTE WWAN Option

VeeaHub Pro VHE09

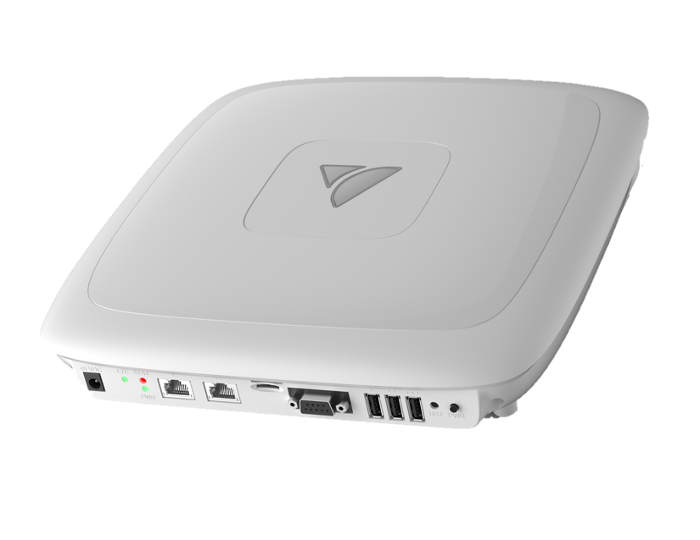

VHE10 White Flat No Background

The mid-performance member of the family, offering a wide range of connectivity and expansion options for enterprise-grade, more demanding applications.

  • Dual-band Wi-Fi 5 to 867Mbps
  • ARMv8 Quad Core Processor, 1.5GHz
  • 2 to 4GB DRAM, 32GB Flash expandable to 2TB
  • Gb Ethernet w/ PoE
  • 5Gb Ethernet
  • Bluetooth 5.0, BLE
  • Zigbee 3.0
  • 3xUSB 3.0
  • Serial Port (RS232/422/485)
  • LoRaWAN option
  • 4G LTE WWAN option w/ external SIM

VeeaHub Pro S VHE10

VHE10 (Pro) White with antenna

The highest performing, most feature-rich VeeaHub designed to meet the toughest challenges at the edge of your network.

  • Tri-band Wi-Fi 5 to 1733Mbps
  • ARMv8 Quad Core Processor, 1.5GHz
  • 4 to 8GB DRAM, 32GB Flash expandable to 2TB
  • Gb Ethernet w/ PoE
  • 1/2.5/5Gb Ethernet
  • Bluetooth 5.0, BLE
  • Zigbee 3.0
  • 3xUSB 3.0
  • Serial Port (RS232/422/485)
  • LoRaWAN option
  • 4G LTE WWAN option w/ external SIM

Outdoor and Industrial Environments

VeeaHub Pro S Outdoor    VHH10

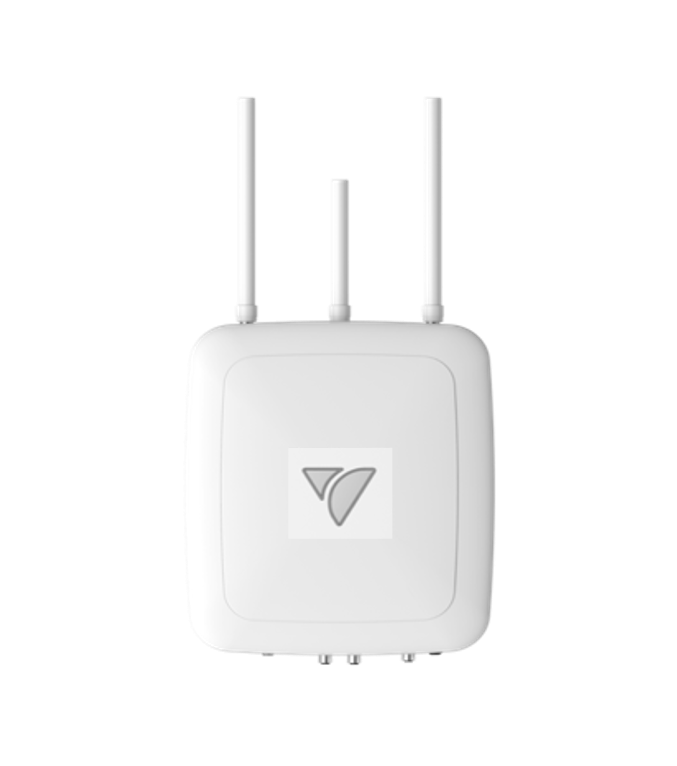

VHH10 better logo

The environmentally-hardened version of the VHE10, focused on Industrial IoT applications, including smart farming, smart cities, and smart manufacturing.

  • IP65 Environmental Rating
  • Wall- or Pole-Mountable
  • Tri-band Wi-Fi 5 to 1733Mbps
  • ARMv8 Quad Core Processor, 1.5GHz
  • 4 to 8GB DRAM, 128GB Flash factory expandable to 2TB
  • Gb Ethernet w/ PoE
  • 1/2.5/5Gb Ethernet
  • Bluetooth 5.0, BLE
  • Zigbee 3.0
  • 3xUSB 3.0
  • Serial Port (RS232/422/485)
  • LoRaWAN option
  • 4G LTE WWAN option
